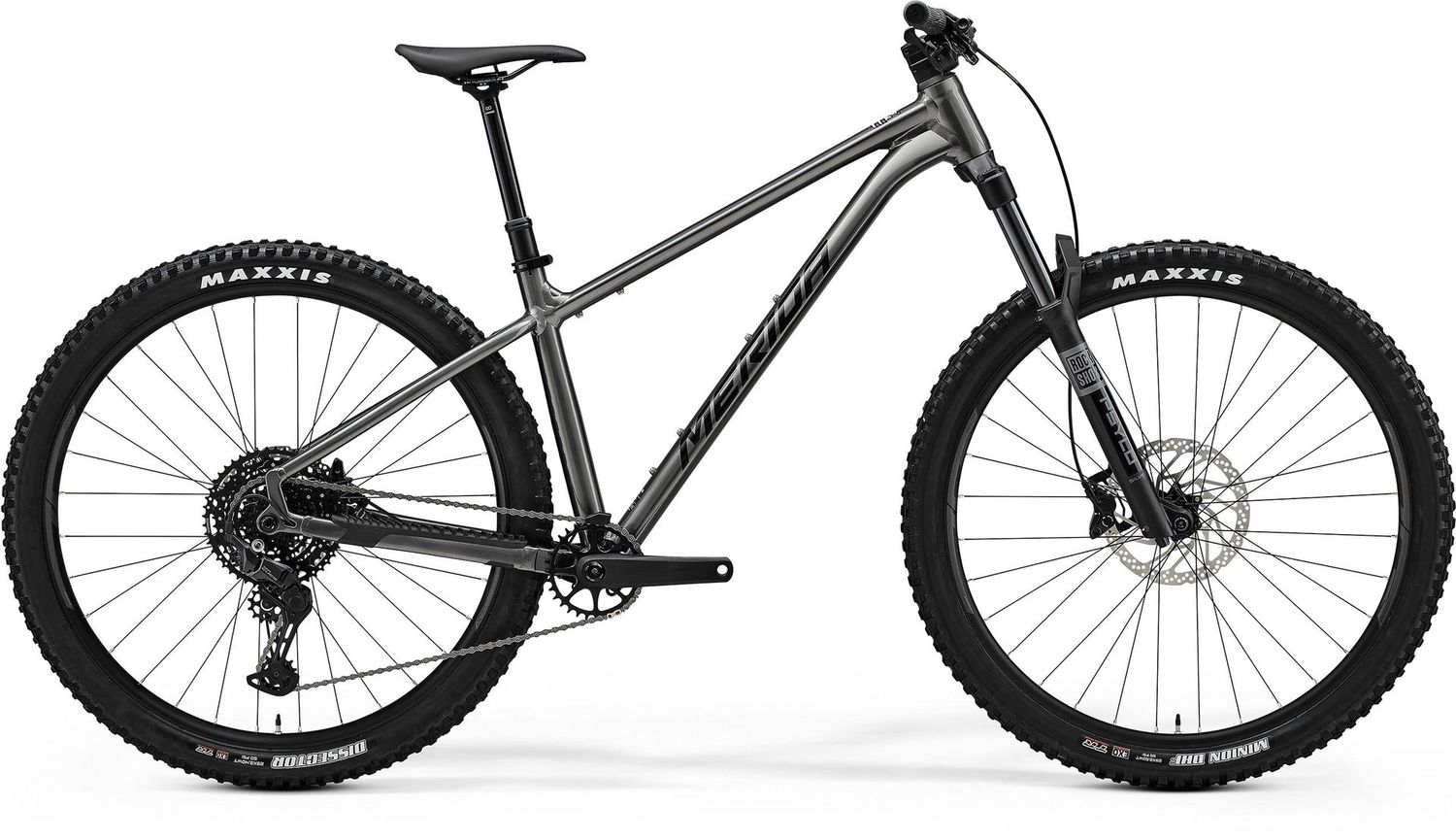

Merida Big Trail 500

£1,250.00
Frame Size
Colour
In stock
Product Details
Brand: Merida

A passion for trail fun, all wrapped up in a no-nonsense package. The BIG.TRAIL 500 offers handling that at inspires confidence and pushes you to go that little bit further in your search for true trail connection. Our top-quality aluminium frame is paired with tough, trail-ready 29er tyres, a 140 mm travel fork and a long travel dropper post to add confidence and capability to any ride.

The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.


model year 2025
  • material: aluminium
  • 29x2.4" max. wheelsize
  • 148x12mm axle standard
  • BSA bottom bracket standard
frame size XShort, Short, Mid, Long, XLong
  • Air
  • 140mm suspension travel
  • platform
  • 29mm inner width
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • 110x15mm width front hub
  • 32 spoke holes
  • Centerlock
  • 148x12mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 29x2.5"
  • fold
  • TR EXO Dual
  • 29x2.4"
  • fold
  • TR EXO Dual
  • including removeable lever, 6/4mm allen key
  • 32 teeth
  • 165mm XSHORT and SHORT
  • 11-48 teeth
  • 10 speed
chain KMC xGlide
shifters Shimano SL-MT500-L / Shimano CUES U6000
  • 4 piston
  • 2 piston
  • 203mm
  • 180mm
  • Upper and lower IPS sealing
  • material: aluminium
  • 35mm diameter
  • 0° stem angle
  • 40 mm
stem size 40 mm
  • material: aluminium
  • 780mm width
  • 20mm rise
grip MERIDA COMP EC
  • 34.9mm diameter
  • 0mm setback
  • XSHORT: 150mm travel seatpost - SHORT : 170mm travel seatpost - MID/LONG: 200mm travel seatpost - XLONG: 230mm travel seatpost
seat clamp MERIDA EXPERT
  • 25% recycled material
  • V-mount
  • weighed at frame size M
  • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
